HOME  >  Products Information  >  CHEMICAL FEEDER
Products Information

WATER

CHEMICAL FEEDER


Chemical Feeder:CPI-10L, 30L, 70L
Main features:
 Option:Electric sensor
 Electromagnetic measurement pump
  • Compact and lightweight pump thanks to separation plate
  • Accurate discharge control
  • Stable performance for long continuous operation
  • Excellent chemical-proof performance and endurance
  • Drip-proof and dust-proof construction
CHEMICAL FEEDER

Specifications:

Item Unit CPI-10L CPI-30L CPI-70L
Installation - Fixed
Level sensor - Option
Pump type - Electromagnetic pulse
Max. discharge cc/min 10 30 70
Min. discharge MPa [ kgf/cm2 ] 1.18 [ 12.0 ] 0.49
Tank capability L 30
Supply voltage v (*1)100/200(single) (*1)200(single)
Dimension (W x H x D) mm 350 x 350 x 455
Dry weight kg 60

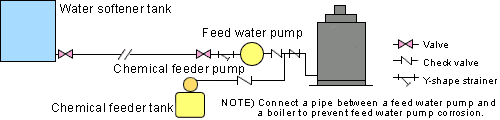

Working diagram:

Working diagram
