Control Device

MI System

    MI System: high efficiency and excellent follow control

 • Improves system efficiency by bringing boilers online when needed, and only when needed.

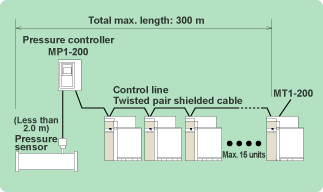

 • A boiler system can be controlled using just one pressure controller and an MI Terminal for each boiler.
 • System expansion can be achieved simply by adding an MI Terminal. (Maximum 15 boilers.)

MI Terminal Service efficiency increases when a single boiler is operated at a higher load factor.
Operating with only the required number of boilers in a multiple unit installation of smaller capacity boilers provides a better combustion efficiency by far than modulating the firing rate of a single large capacity boiler. The concept of this MI System has made Miura the industry leader. The system provides a reliable steam supply and energy savings by operating with multiple boilers used in rotation.

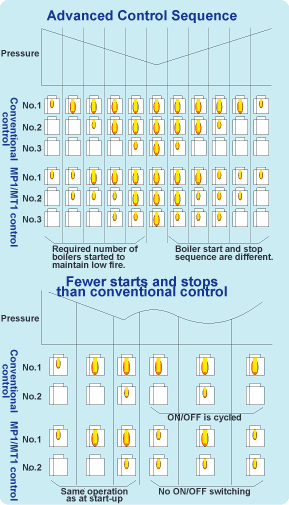

Advanced Control Sequence

Priority combustion immediately after a complete blowdown
Priority combustion can be performed for a fixed duration immediately after a complete blowdown. This enables quick return of boiler water to the appropriate condition.

Automatic Rotation
The order of precedence is automatically set at a 1 to 7 day interval so that operation of each boiler is uniform. It is also possible to set the order of precedence of a specific boiler.

Backup Function
Should a boiler go off line due to a malfunction, inspection, or other cause, backup is initiated by redistributing pressure to the remaining boilers.
